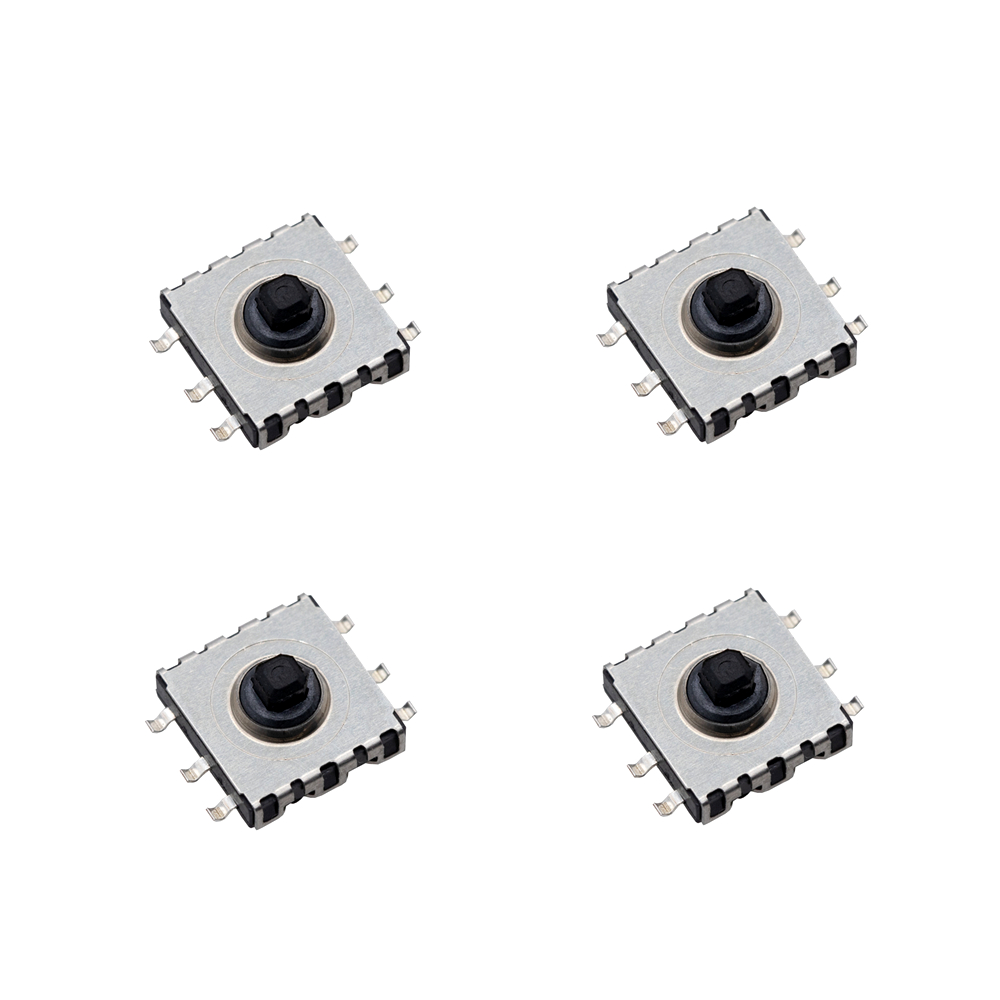

Name: SMD 10*10mm Micro Mini 4-Directn Multi-Directional Navigation Switch With Center Push|50Pcs
SKU: MDS5-R10HxP6
Availability: InStock

Description

SMD 10*10mm Micro Mini 4-Directn Multi-Directional Navigation Switch With Center Push

Feature

1.Size: 10mmx10mm(Body);

2.SMD;

3.Pins: 6Pins;

4.Color: Metal, Black(Button);

5.Height: 5mm, 7mm, 9mm;

6.Directions: 5(4 Directions+Center Push);

Electrical

1.Rated Voltage: 12V;

2.Rated Current: 100mA;
3.Contact Resistance: ≤100mΩ;
4.Insulation Resistance: ≥100MΩ;
5.Withstand Voltage: AC250V / 1Min;

Mechanical

1.Travel: 0.20±0.1mm(4-Directions), 0.15±0.1mm(Center);

2.Acting Force: 160±50gf(4-Directions), 280±100gf(Center);

3.Operating Life: ≥200,000Cycles;

10mm Multi-Directional Switch

Additional information

Weight	0.05 kg
Height:	h=5mm, h=7mm, h=9mm
