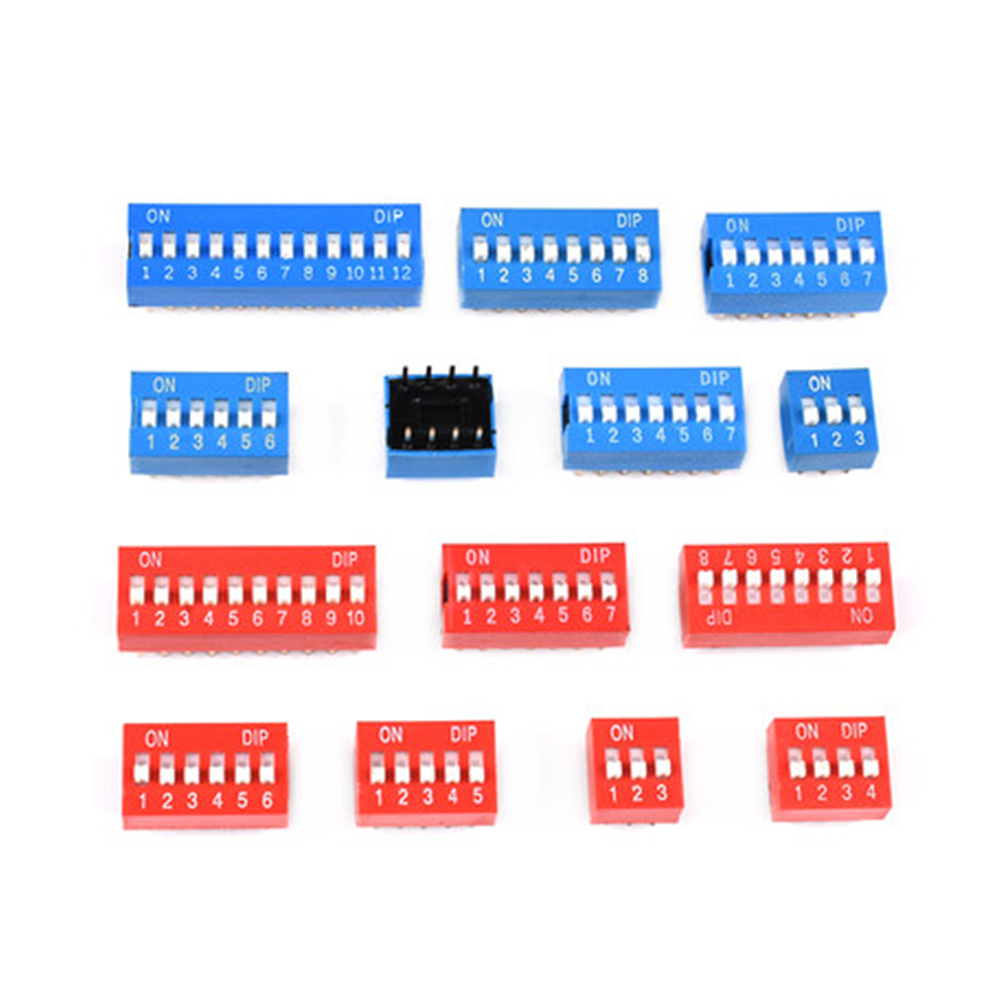

PCB Mount Through Hole Red Blue 1/2/3/4/5/6/7/8/9/10/12 Positions 2.54mm Pitch Top Key DIP Switch|50Pcs

$2.95$8.65

50PCS PCB Mount Through Hole Red Blue 1/2/3/4/5/6/7/8/9/10/12 Positions 2.54mm Pitch Top Key DIP Switch

SKU: DSM-T-R Category: Tag:

Description

PCB Mount Through Hole Red Blue 1/2/3/4/5/6/7/8/9/10/12 Positions 2.54mm Pitch Top Key DIP Switch
Feature
1.PCB Mount: DIP;
2.Positions: 1,2,3,4,5,6,7,8,9,10,12;
3.Color: Red or Blue(Body);
4.Pitch: 2.54mm;
5.Key On The Top Surface;
Electrical

1.Cotact Rating: 100mA@50V(Non-switching), 25mA@24V(Switching);
2.Contact Resistance:  ≤50mΩ;
3.Insulation Resistance:  ≥100MΩ;
4.Switch Capacitance:  5pF Max @1MHz;
5.Withstand Voltage: AC500V / 1Min;

Mechanical
1.Operationg Force: ≤8N;
2.Mechanical Life: ≥2000 Cycles;
3.Temperature: -40℃~85℃;
4.Resistance to Soldering Heat: 260±5℃ for 5±1 seconds;
5.Certificate: RoHS Compliant;




Additional information

Weight 0.05 kg
Color:

Red, Blue

Positions:

1Positions, 2Positions, 3Positions, 4Positions, 5Positions, 6Positions, 7Positions, 8Positions, 9Positions, 10Positions, 12Positions
