S Video to USB Converter CVBS Analog Camera Adapter

Stamp Hole Analog Camera AV CVBS S-Video to USB UVC Drive-free Video Adapter Adaptor Converter Module|1Pcs

Original price was: $8.00.Current price is: $7.60.

1PCS Stamp Hole Analog Camera AV CVBS S-Video to USB UVC Drive-free Video Adapter Adaptor Converter Module

SKU: C2US-R1917-UVC-S Categories: ,

Description

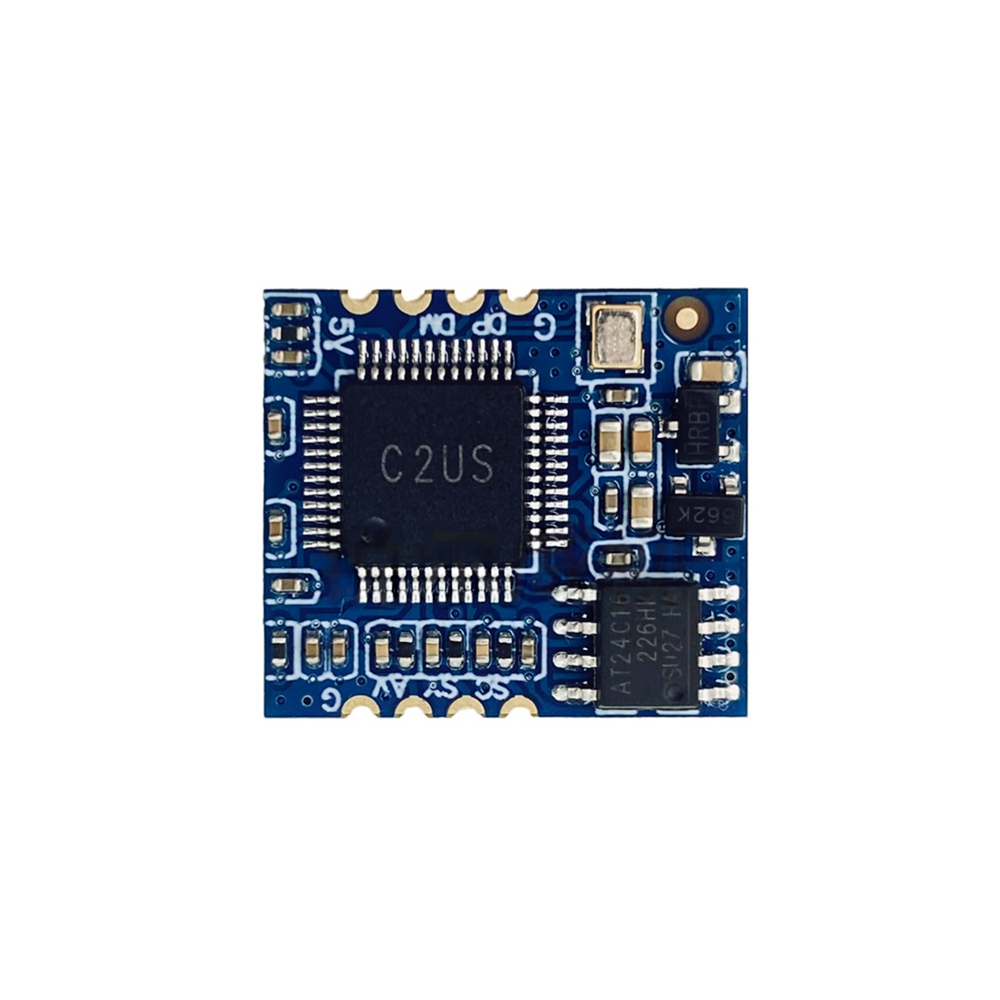

Stamp Hole Analog Camera AV CVBS S-Video to USB UVC Drive-free Video Adapter Adaptor Converter Module
Feature
1.Input Signal: CVBS(PAL/NTSC Compatible) or S-Video(4-Wires);
2.Output Signal: USB(UVC Drive-free);
3.Output Format: MJPEG/YUV422;
4.Support Resolution:
1920×1080@30/20/15/10fps(MJPEG);
1280×720@60/50/30/10fps(MJPEG);
800×600@60/50/30/10fps(MJPEG);
720×576@60/50/30/10fps(MJPEG);
720×480@60/50/30/10fps(MJPEG);
640×480@60/50/30/10fps(MJPEG);
480×320@60/50/30/10fps(MJPEG);
320×240@60/50/30/10fps(MJPEG);
720×576@25/20/10/5fps(YUV422);
720×480@30/20/10/5fps(YUV422);
640×480@30/20/10/5fps(YUV422);
480×320@30/20/10/5fps(YUV422);
320×240@30/20/10/5fps(YUV422);
5.Color: Blue;
6.Adjustable Parameter: Brightness, Contrast, Hue, Saturation;
Electrical
1.USB Power: 5VDC;
Mechanical
1.Converter Size: 18.6mm(D)x16.5mm(W);
2.Terminal: Stamp Holes;

Additional information

Weight 0.003 kg
Color:

Black, White
