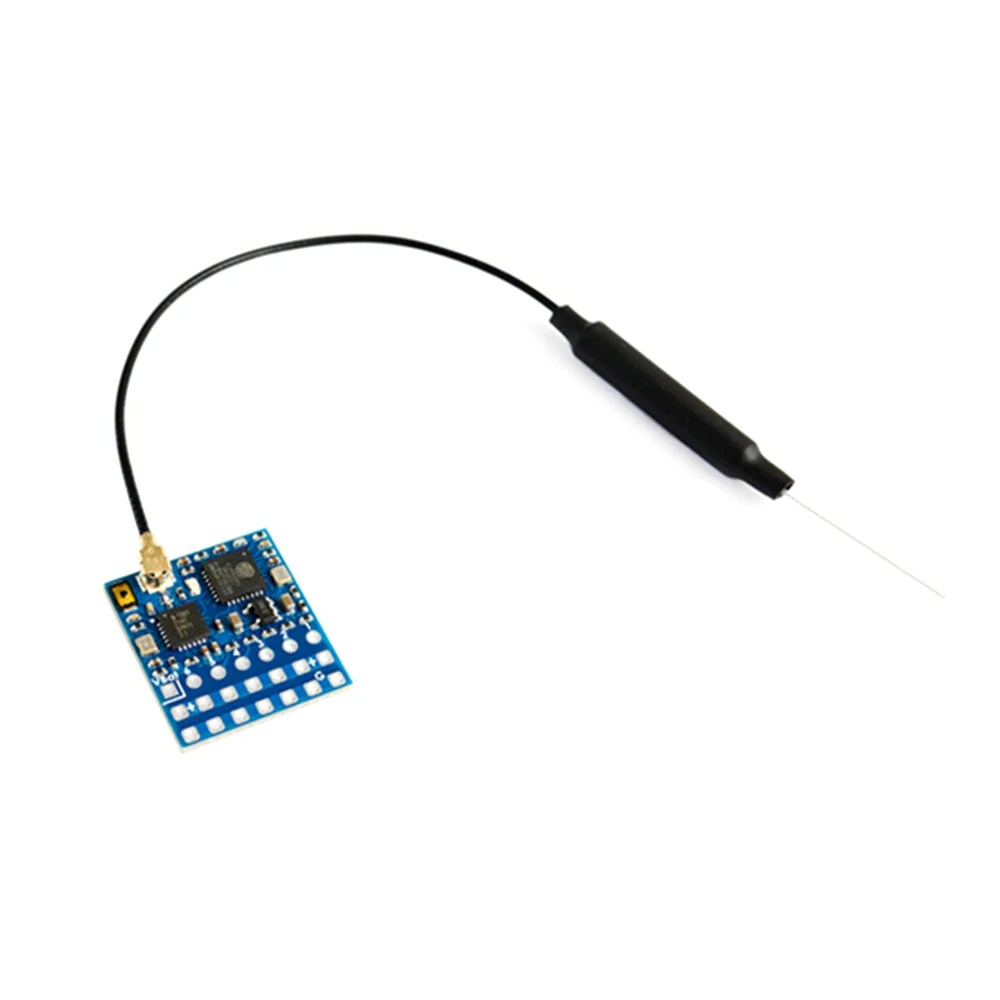

Mateksys MATEK ELRS-R24-P6 UAV Drone ExpressLRS ELRS 2.4GHz PWM Receiver Module for RC FPV Multirotor Airplane Fixed-wing Drones FC Flight Controller|1Pcs

Description

• ESP8285, SX1281

• Antenna connector: IPEX MHF 1

• 6x PWM outputs

• Support 2~8S VBat voltage sense

• RF Frequency: 2.4GHz (2400~2480MHz)

• Telemetry power: 12dbm

• Receiver output protocol: PWM

• Input voltage: 4~9V DC @ “+” pad

• Voltage sense: 34V Max. @ “VBat” pad

• Power dissipation: 45mA(binding), 85mA(wifi mode)

• Generic ESP8285 6xPWM 2.4Ghz RX, or HappyModel EPW6 2.4GHz PWM RX

• ExpressLRS wiki for PWM receiver, Click HERE

• Make sure Receiver and TX module both are running ExpressLRS 3.0 or newer

• Receiver has ExpressLRS 3.0 preloaded with binding phrase “123456”, the Receiver will never enter binding mode if using the traditional binding procedure.

• You need to reflash it with your binding phrase OR go into WebUI to set your binding phrase.

• Disconnect ESC and servos from receiver first.

• Power on receiver by 5V source. Receiver’s LED(Red) will blink slow at first, and after 20s, it should blink fast indicating it’s on Wifi Hotspot Mode.

• More detailed steps, pls refer this page.

• Target: HappyModel EPW6 2.4GHz PWM RX

• Disconnect ESC and servos from receiver first.

• Wire the receiver into the USB-TTL adapter, with TX on receiver connected to the Rx on the USB-TTL, and RX on receiver connected to the Tx of the USB-TTL. Wire 5V and GND of the USB-TTL to 5V and GND of the Receiver.

• Press the boot button while powering on the receiver, then release – the Red LED on receiver should now be solid.

• Configurator , Select the target HappyModel EPW6 2.4GHz PWM RX and “UART” for Flashing Method, set your bind phrase and Firmware Options , Check “erase before flash” and “Force FLash “.

---
