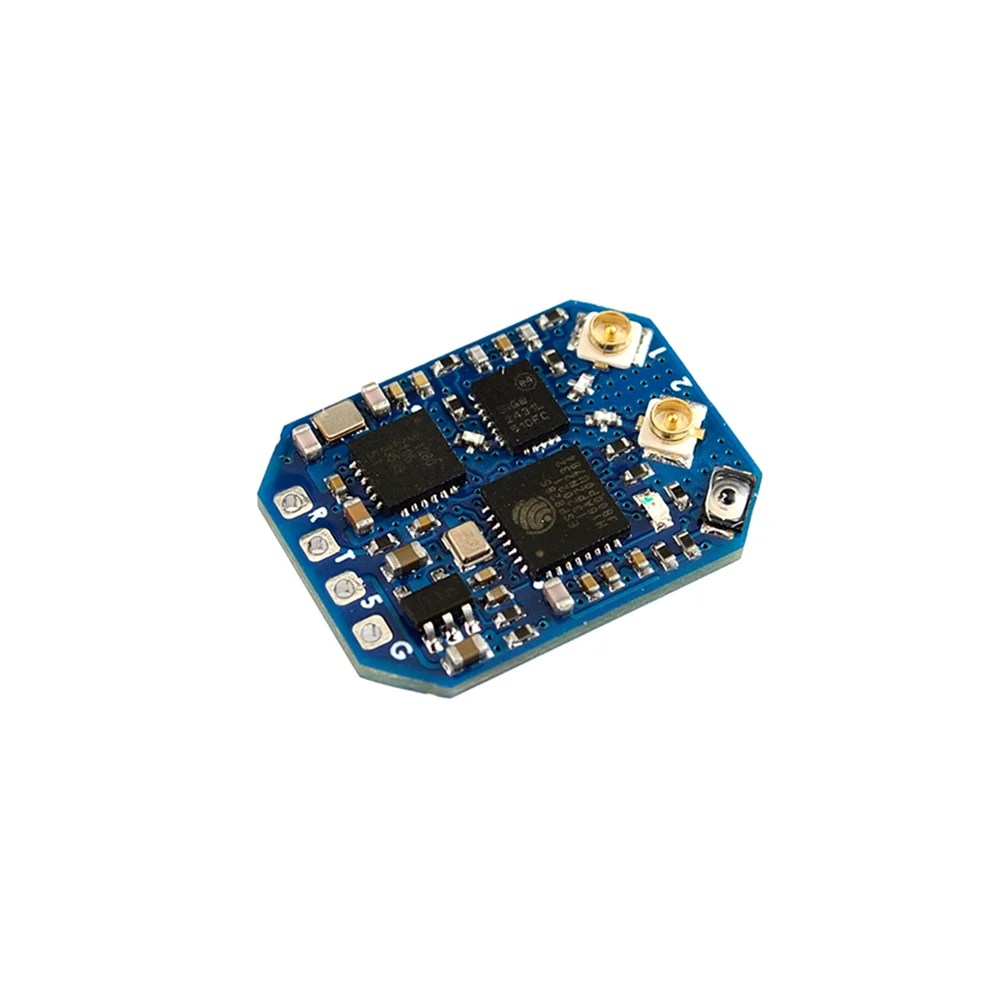

Mateksys MATEK ELRS-R24-D UAV Drone ExpressLRS ELRS 2.4GHz Receiver Module for RC FPV Multirotor Airplane Fixed-wing Drones FC Flight Controller|1Pcs

Description

• ESP8285, SX1280/1281IMLTRT

• PA/LNA: SE2431L

• Antenna connector: IPEX MHF 1

• RF Frequency: 2.4GHz (2400~2480MHz)

• Telemetry power: 22.5dbm~23dbm

• SE2431L RX_gain: 12.5dB

• Diversity (antenna-switching), default ANT2

• Receiver protocol: CRSF

• Input voltage: 4~9V DC @ 5V pad

• Power dissipation: 40~45mA(before binding), 70~75mA(binding), 90~95mA(wifi mode)

• ExpressLRS 1.x & 2.x, MATEK 2400 RX enable “USE_DIVERSITY

• ExpressLRS 3.x or newer, MATEK R24-D 2.4GHz RX

• Firmware update via UART or WIFI

---
