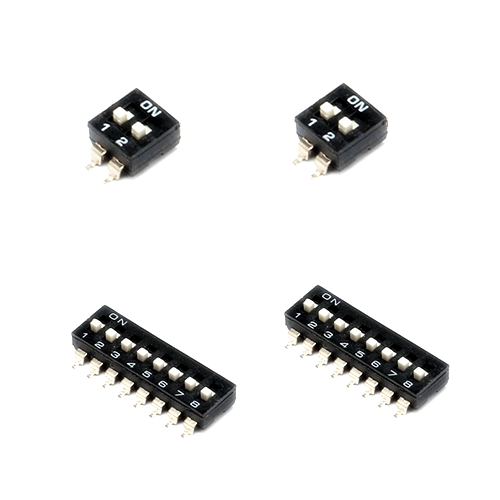

PCB Mount Black 1/2/3/4/5/6/7/8/9/10/12 Positions SMD SMT 2.54mm Pitch Micro Mini DIP Switch|50Pcs

Name: PCB Mount Black 1/2/3/4/5/6/7/8/9/10/12 Positions SMD SMT 2.54mm Pitch Micro Mini DIP Switch|50Pcs
SKU: HAD-WA-R
Availability: InStock

Price range: $6.84 through $20.90

50PCS PCB Mount Black 1/2/3/4/5/6/7/8/9/10/12 Positions SMD SMT 2.54mm Pitch Micro Mini DIP Switch

Positions:

Key Type:

Clear

SKU: HAD-WA-R Category: Toggle Switch Tag: DIP Switch

Description

PCB Mount Black 1/2/3/4/5/6/7/8/9/10/12 Positions SMD SMT 2.54mm Pitch Micro Mini DIP Switch

Feature

1.PCB Mount: SMD;

2.Positions: 1,2,3,4,5,6,7,8,9,10,12;

3.Color: Black(Body);

4.Pitch: 2.54mm;

5.Key Type: Low Key(The key under the top surface) or High Key(The key convex the top surface);

Electrical

1.Rated Voltage: 24V;

2.Rated Current: 100mA(switching non-frequently), 25mA(switching frequently);
3.Contact Resistance: ≤50mΩ;
4.Insulation Resistance: ≥100MΩ;
5.Withstand Voltage: AC500V / 1Min;

Mechanical

1.Operationg Force: ≤8N;

2.Mechanical Life: ≥2000 Cycles;

3.Temperature: -40℃~85℃;

4.Resistance to Soldering Heat: 260±5℃ for 5±1 seconds;

5.Certificate: RoHS Compliant;

Additional information

Weight	0.05 kg
Positions:	1Positions, 2Positions, 3Positions, 4Positions, 5Positions, 6Positions, 7Positions, 8Positions, 9Positions, 10Positions, 12Positions
Key Type:	Low Key, High Key
