Sale!

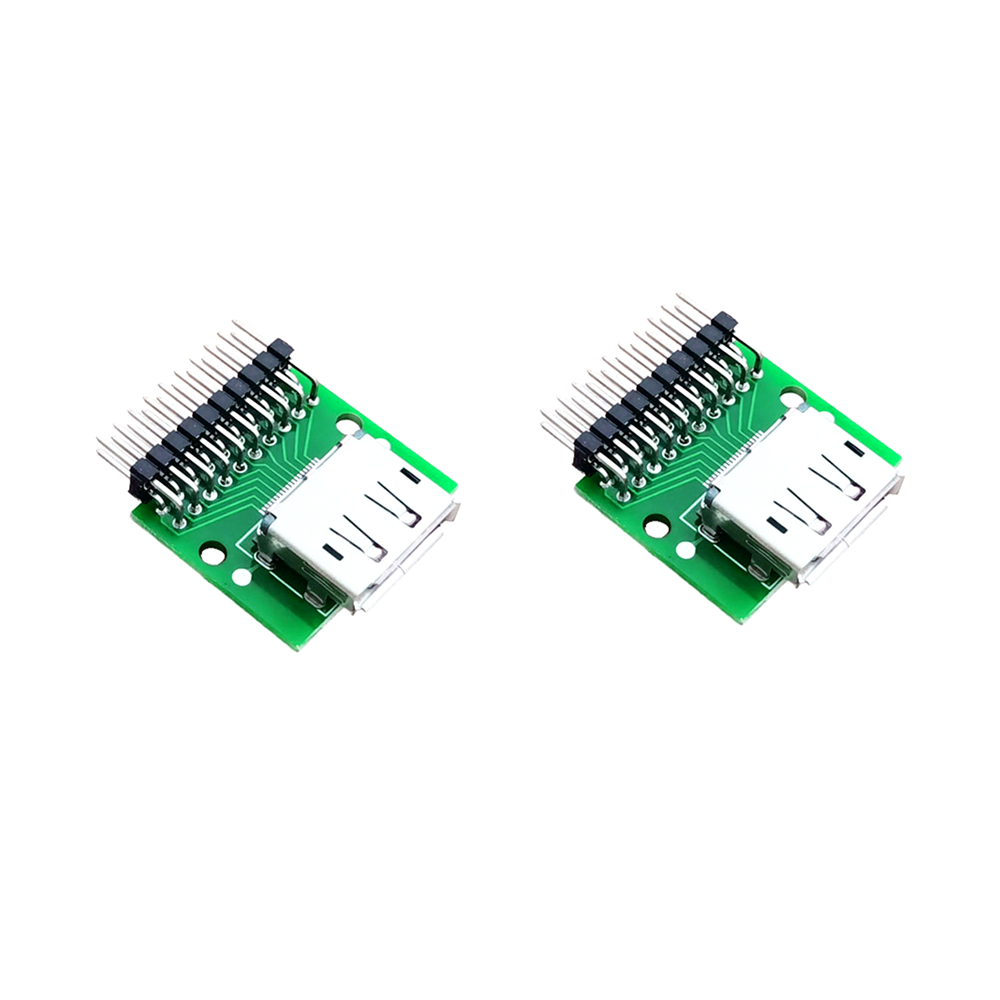

Displayport DP Display Port Female Breakout PCB Board

Green DisplayPort DP Display Port Connector Female 20P Adaptor Test Circuit PCB Breakout Board With Right Angle Pin Header|1Pcs

$2.00

1PCS Green DisplayPort Display Port DP Connector Female 20P Adaptor Test Circuit PCB Breakout Board With Right Angle Pin Header

SKU: AdB-DP-20PF-R Category:

Description

Green DP DisplayPort Display Port Female 20P Adaptor Test Circuit PCB Breakout Board With Right Angle Pin Header
Feature
1.Display Port;
2.Connector Layout: Horizontal;
3.Gender: Female;
4.Double Side;
5.Color: Green, Tin-Spray;
6.Aperture diameter: 1.0mm;
7.With 20P 2.54mm Pitch Right Angle Pin Header;
8.PCB Board Thickness: 1.6mm;
Mechanical
1.PCB Size: 24mmx28.33mm;
2.Material: FR4 Fiberglass Board;

Additional information

Weight 0.002 kg
